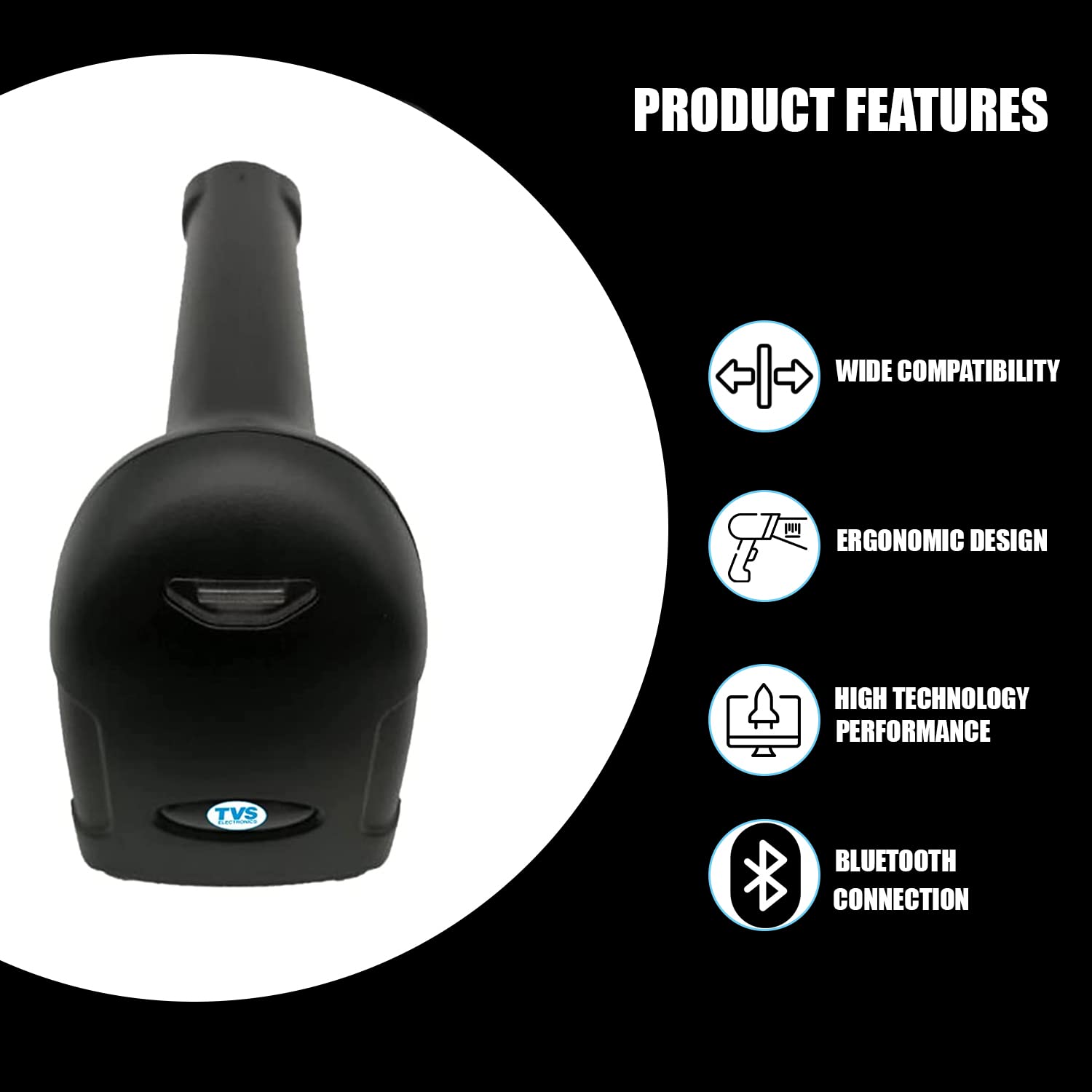

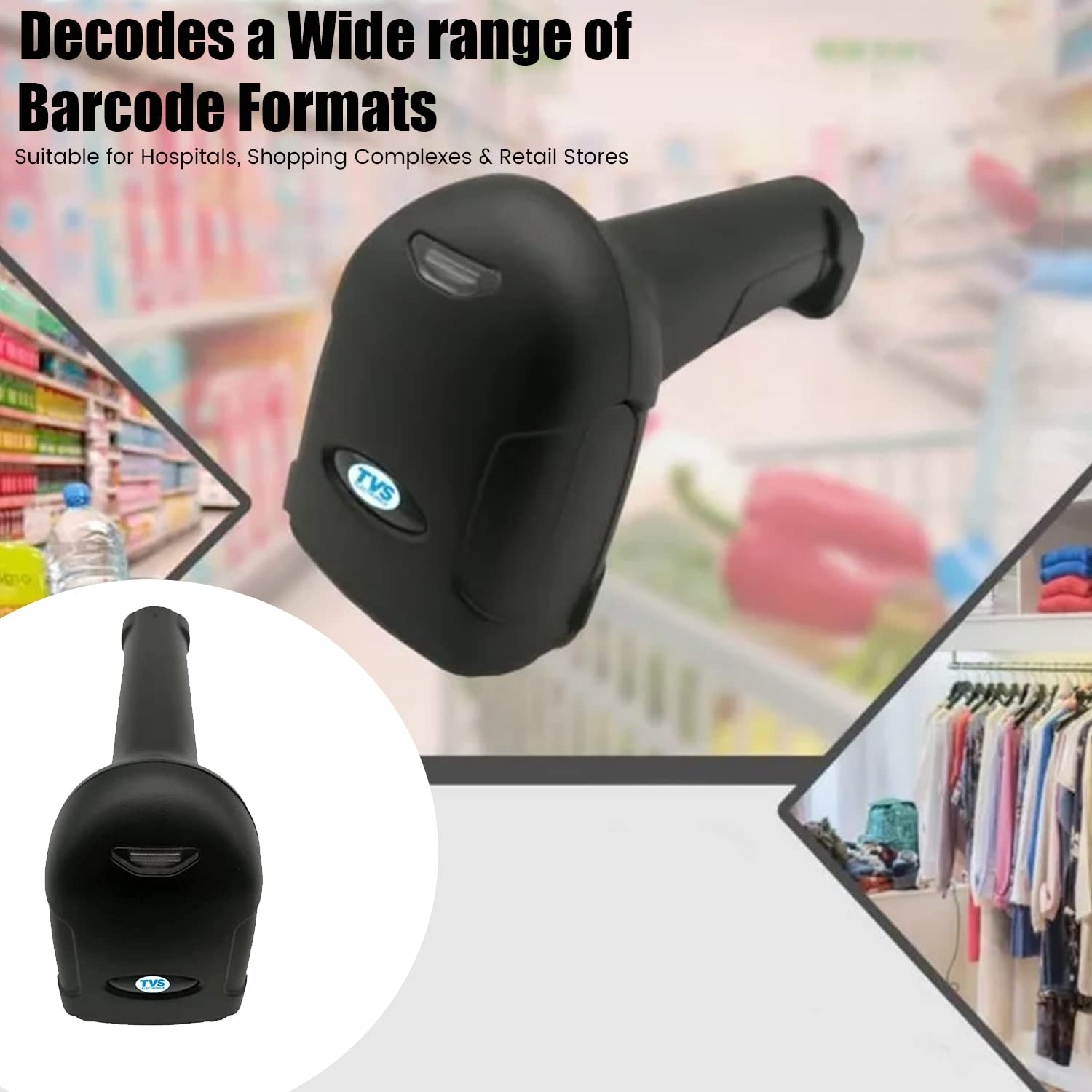

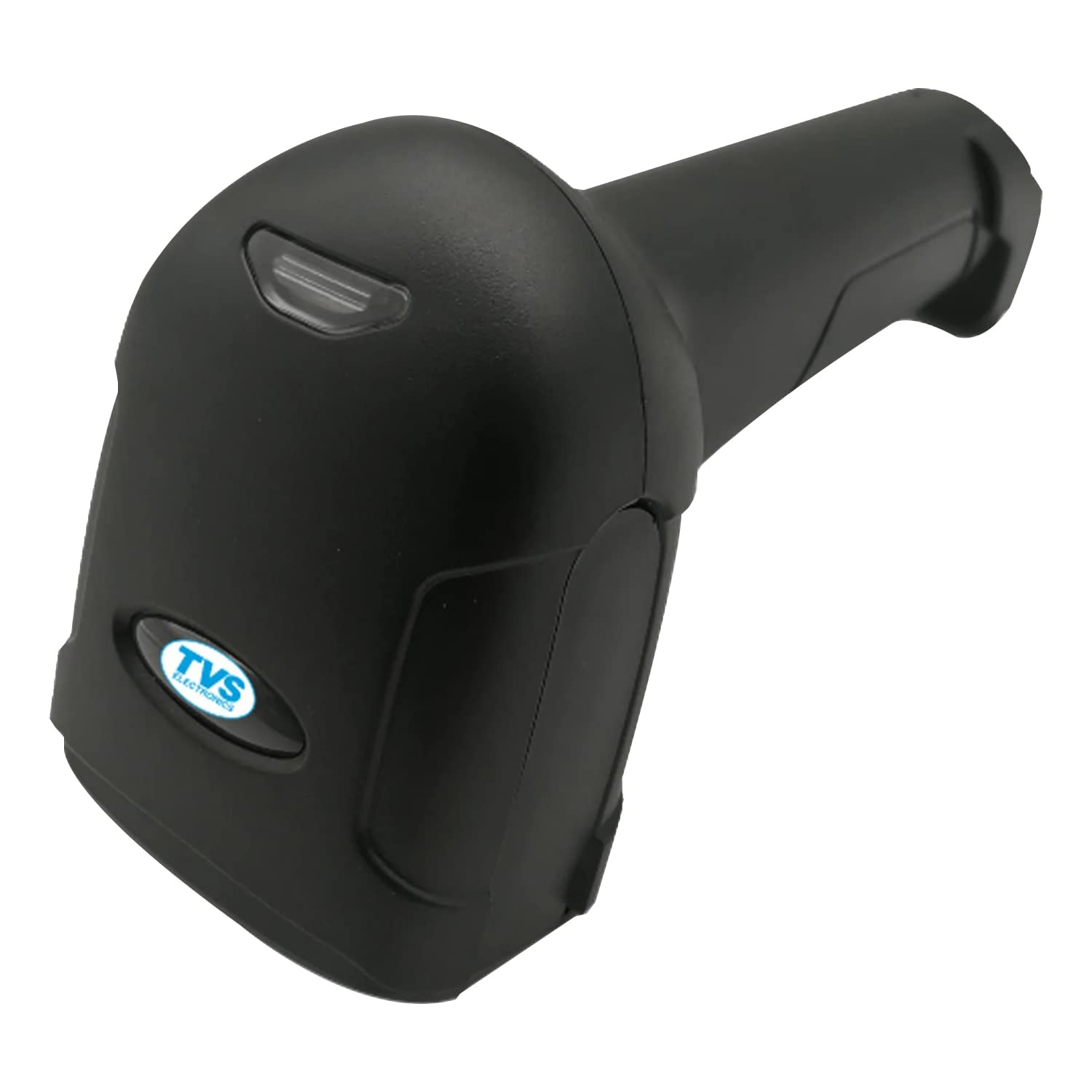

TVS 2D i201G Barcode Scanner

Technical Specifications

Basic Info

• Type: 2D Imager (Area Scan)
• Scan Technology: CMOS Sensor
• Light Source: White LED + Aiming Pattern (650nm Laser)
• Interface: USB (HID/KBW) / RS-232 / Keyboard Wedge (Switchable)

Performance

• Scan Speed: 300 scans/second
• Scan Field:
  • Near: 50 x 50mm (at 60mm distance)
  • Far: 120 x 120mm (at 300mm distance)
• Tilt/Skew Tolerance: ±60°
• Supported Symbologies:
  • 1D: UPC, EAN, Code 128, Code 39, GS1-128
  • 2D: QR, Data Matrix, PDF417, Aztec
  • Postal Codes: USPS, Royal Mail, Japan Post

Physical Specs

• Dimensions: 160 x 80 x 100mm (LxWxH)
• Weight: 180g (Without cable)
• Cable: 2.1m USB-A (Shielded)
• Drop Rating: 2m (Concrete)
• IP Rating: IP54 (Dust & Splash Proof)

Power & Compatibility

• Voltage: 5V DC (±5%) via USB
• Current: 250mA (Operating)

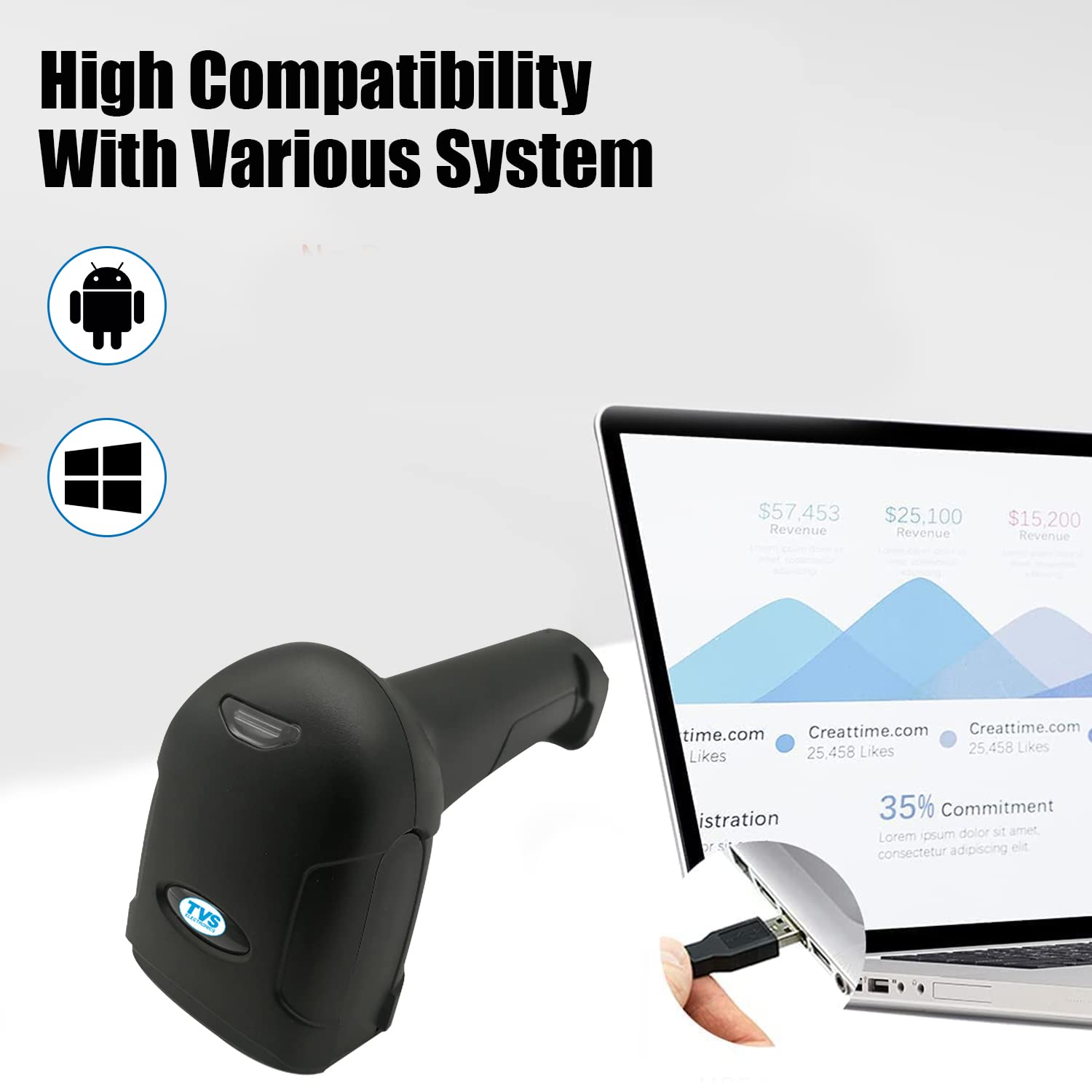

• OS Support: Windows, Linux, Android, iOS (USB-OTG)

Special Features

• Omni-Directional Scanning: Reads barcodes at any angle
• Adaptive Focus: Auto-adjusts for near/far scanning
• Audio/Visual Feedback: Beeper + Multi-color LED
• Batch Mode: Stores 10,000 scans offline (Optional)

Warranty & Compliance

• Warranty: 2 Years (India)
• Certifications: CE, FCC, RoHS, ENERGY STAR

Key Selling Points

✔ Blazing 300 scans/sec – Ideal for high-traffic retail
✔ Future-Proof 2D Scanning – Reads QR/Data Matrix for digital payments
✔ Military-Grade Durability – IP54 rated, survives 2m drops
✔ Plug-n-Play – Works instantly with Android/iOS/PC
