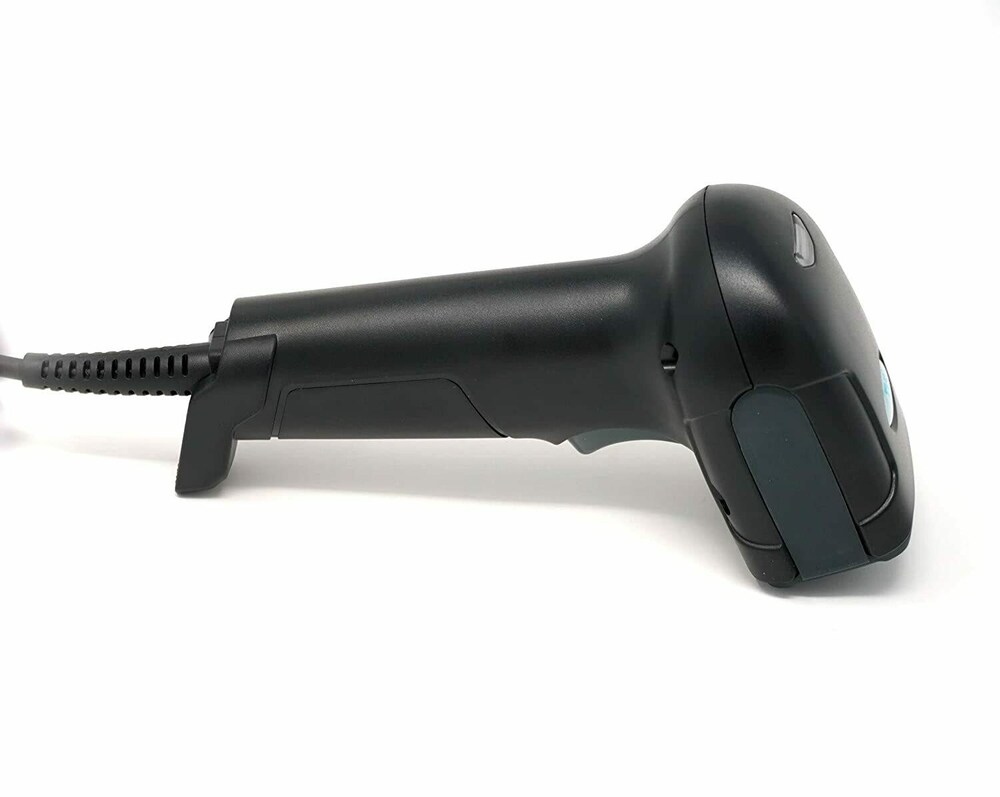

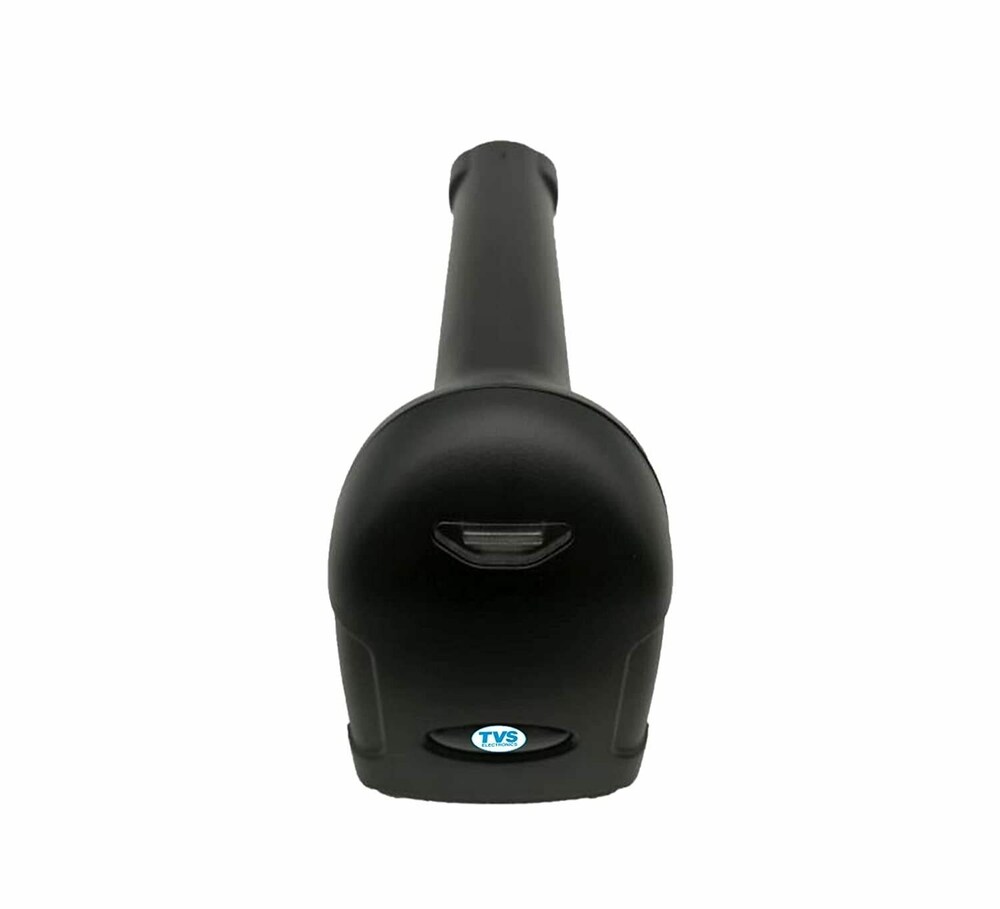

TVS BS-CI03G Barcode Scanner

Technical Specifications

Basic Information

• Type: 1D Laser Barcode Scanner
• Interface: USB (Keyboard Wedge) / RS-232 (Switchable)
• Scan Technology: 650nm Visible Laser Diode
• Scan Rate: 100 scans/second
• Tilt Angle: ±60° | Skew Angle: ±65°

Performance

• Resolution: 0.1mm (4 mil) for UPC/EAN
• Scan Distance: 30mm – 450mm (Standard Range)
• Supported Barcodes:
  • UPC/EAN, Code 39, Code 128, Code 93
  • Interleaved 2 of 5, Codabar, GS1-128

Physical Specifications

• Dimensions: 165mm (L) × 70mm (W) × 95mm (H)
• Weight: 150g (Without cable)
• Cable Length: 1.8m (Standard)
• Drop Resistance: 1.5m (Concrete)

Power & Compatibility

• Power Consumption: 2.5W (Operating)
• Voltage: 5V DC (±0.5V) via USB
• OS Support: Windows, Linux, Android (USB HID)

Special Features

• Omni-Directional Scanning: 360° scan pattern
• Audible Feedback: Beeper with volume control
• LED Indicator: Scan status light
• IP Rating: IP42 (Dust & Splash Resistant)

Warranty & Compliance

• Warranty: 1 Year (India)
• Certifications: CE, FCC, RoHS

Key Selling Points

✔ High-Speed Scanning – 100 scans/sec for rapid checkout

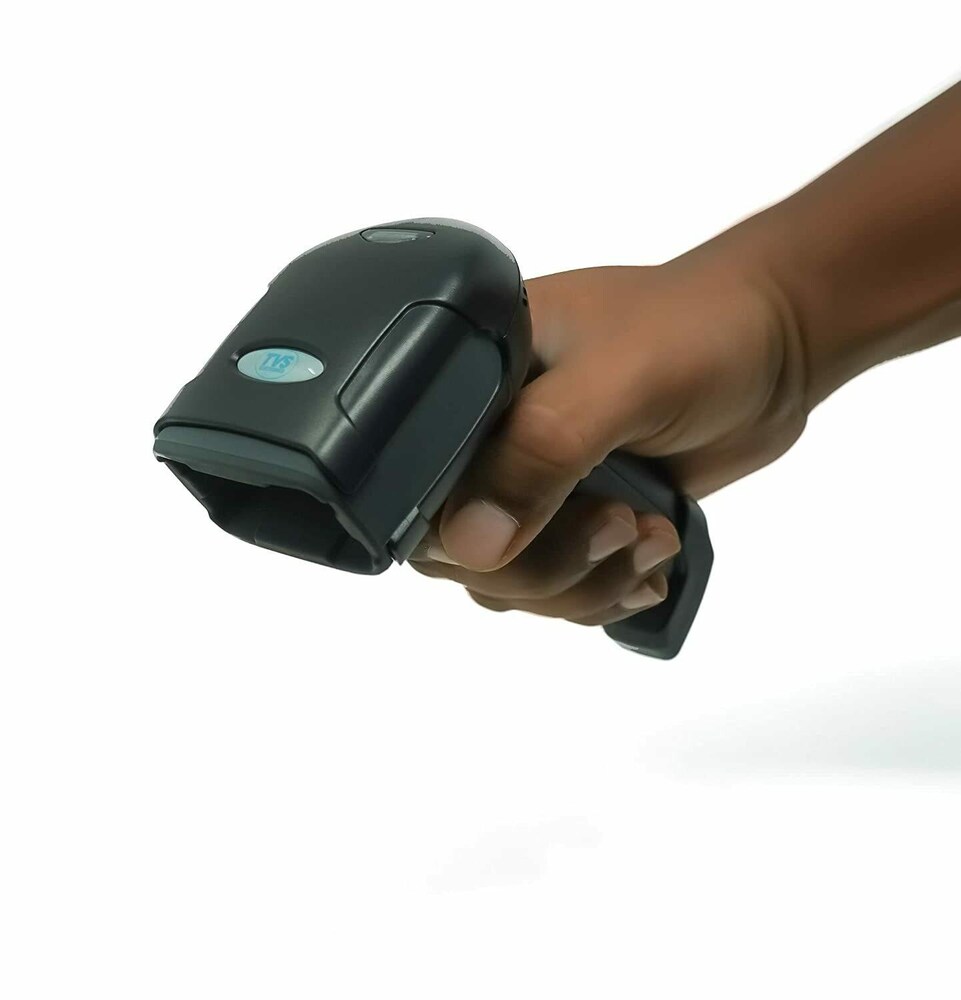

✔ Ergonomic Design – Pistol grip for comfortable all-day use
✔ Plug-and-Play – No drivers needed for USB keyboard mode
✔ Durable Build – Survives 1.5m drops onto concrete
