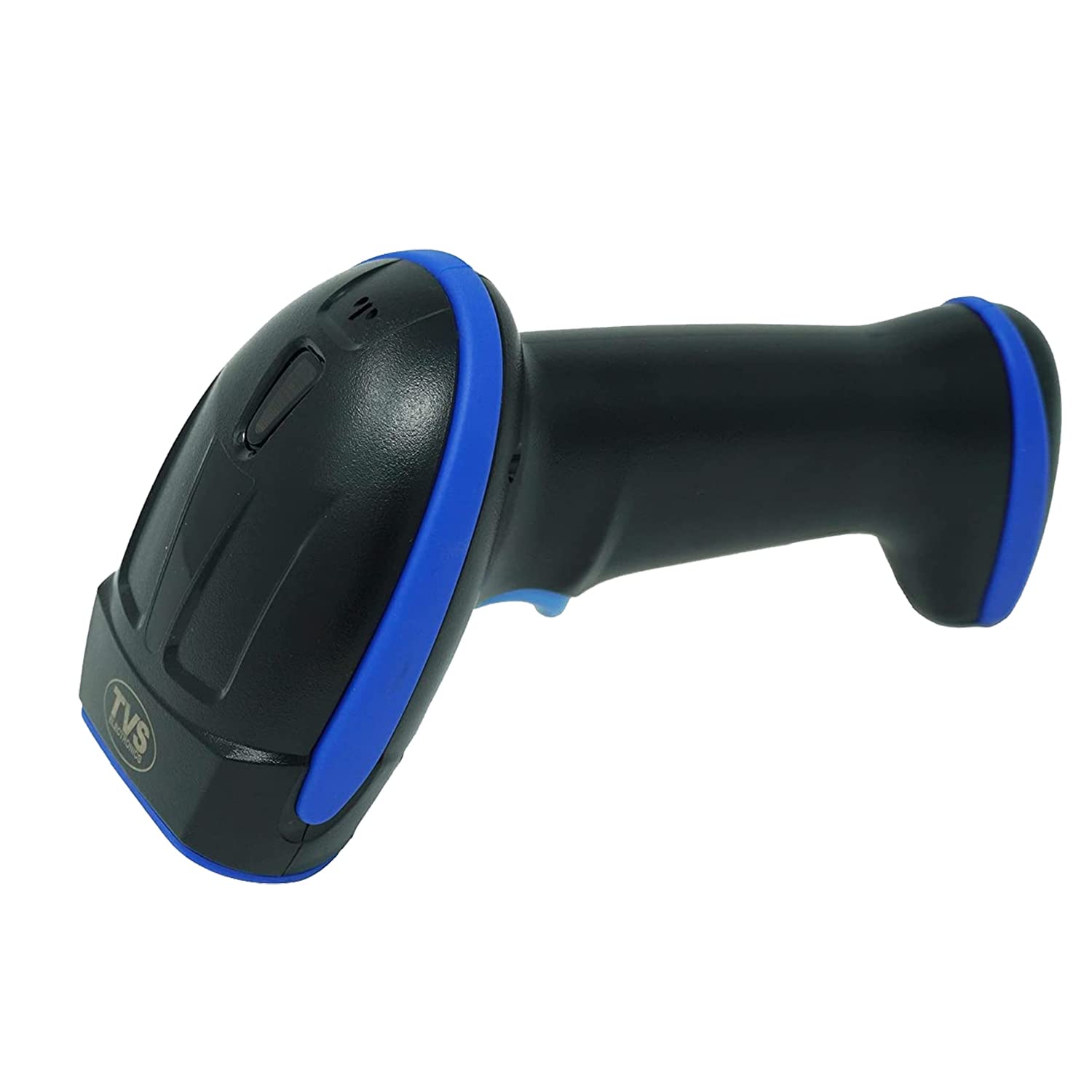

TVS L150 Wireless Barcode Scanner

Technical Specifications

Basic Information

• Type: 1D Laser Barcode Scanner
• Connection: Wireless (2.4GHz RF) / USB Wired (Switchable)
• Range: Up to 100 meters (Open space)
• Frequency: 2.4GHz ISM Band (Auto-channel selection)
• Scan Technology: 650nm Laser Diode

Performance

• Scan Speed: 100 scans/second
• Scan Distance: 50mm – 450mm
• Tilt Angle: ±60° | Skew Angle: ±55°
• Supported Barcodes:
  • UPC/EAN, Code 39, Code 128, Code 93
  • Interleaved 2 of 5, Codabar, GS1-128

Battery & Power

• Battery Type: Rechargeable Li-ion (1000mAh)
• Battery Life: Up to 40 hours (Continuous use)
• Charging Time: 3 hours (Via Micro USB)
• Low Battery Alert: LED + Beep Warning

Physical Specifications

• Dimensions: 165mm (L) × 70mm (W) × 95mm (H)
• Weight: 180g (Including battery)
• Drop Resistance: 1.8m (Concrete)
• IP Rating: IP42 (Dust & Splash Resistant)

Wireless Features

• Multi-Device Pairing: Supports 1 receiver with 4 scanners
• Encryption: 128-bit AES (Secure data transmission)
• Auto-Sleep Mode: Activates after 5 minutes of inactivity

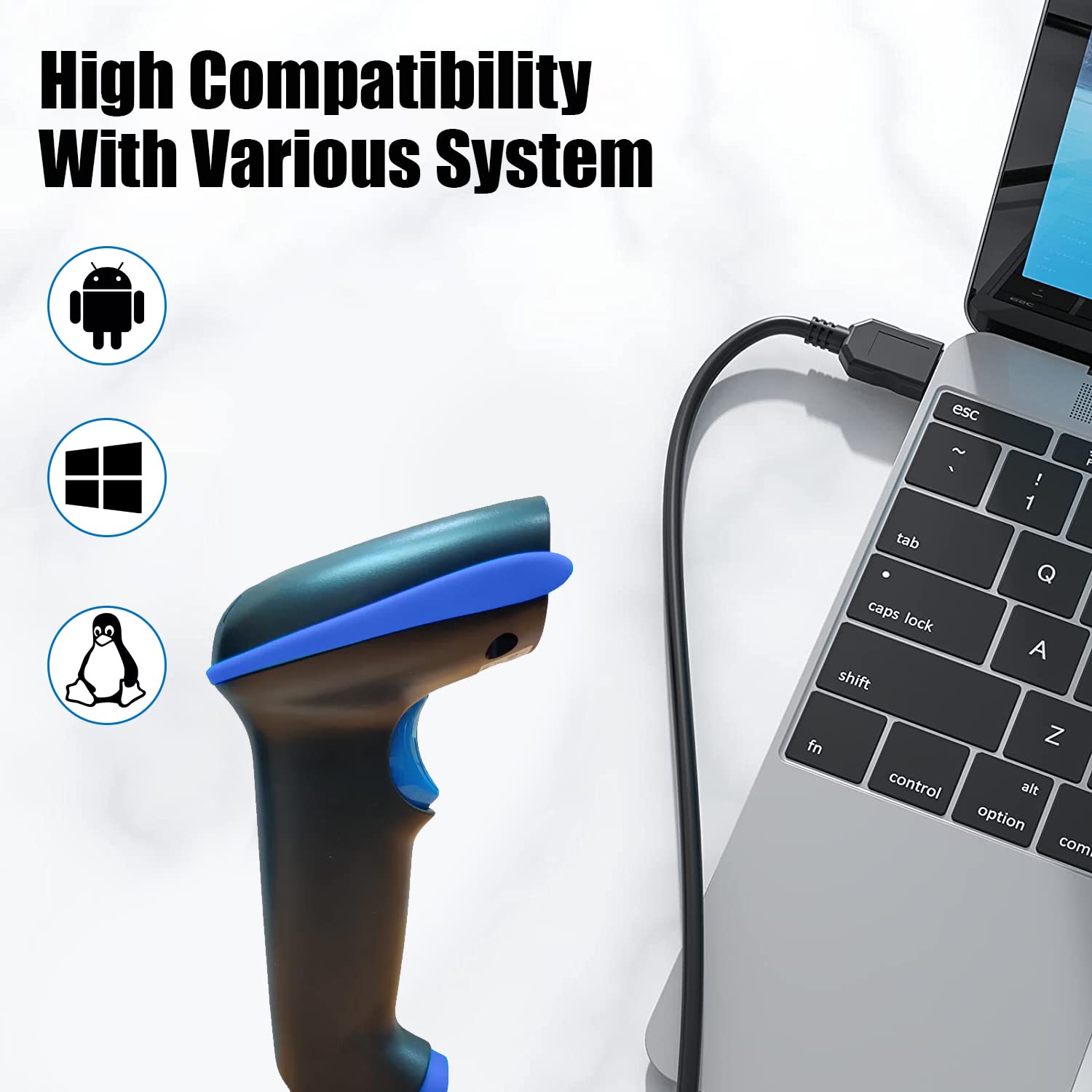

Compatibility

• Operating Systems: Windows, Linux, Android
• Host Interfaces: USB (HID/KBW), RS-232 (With adapter)

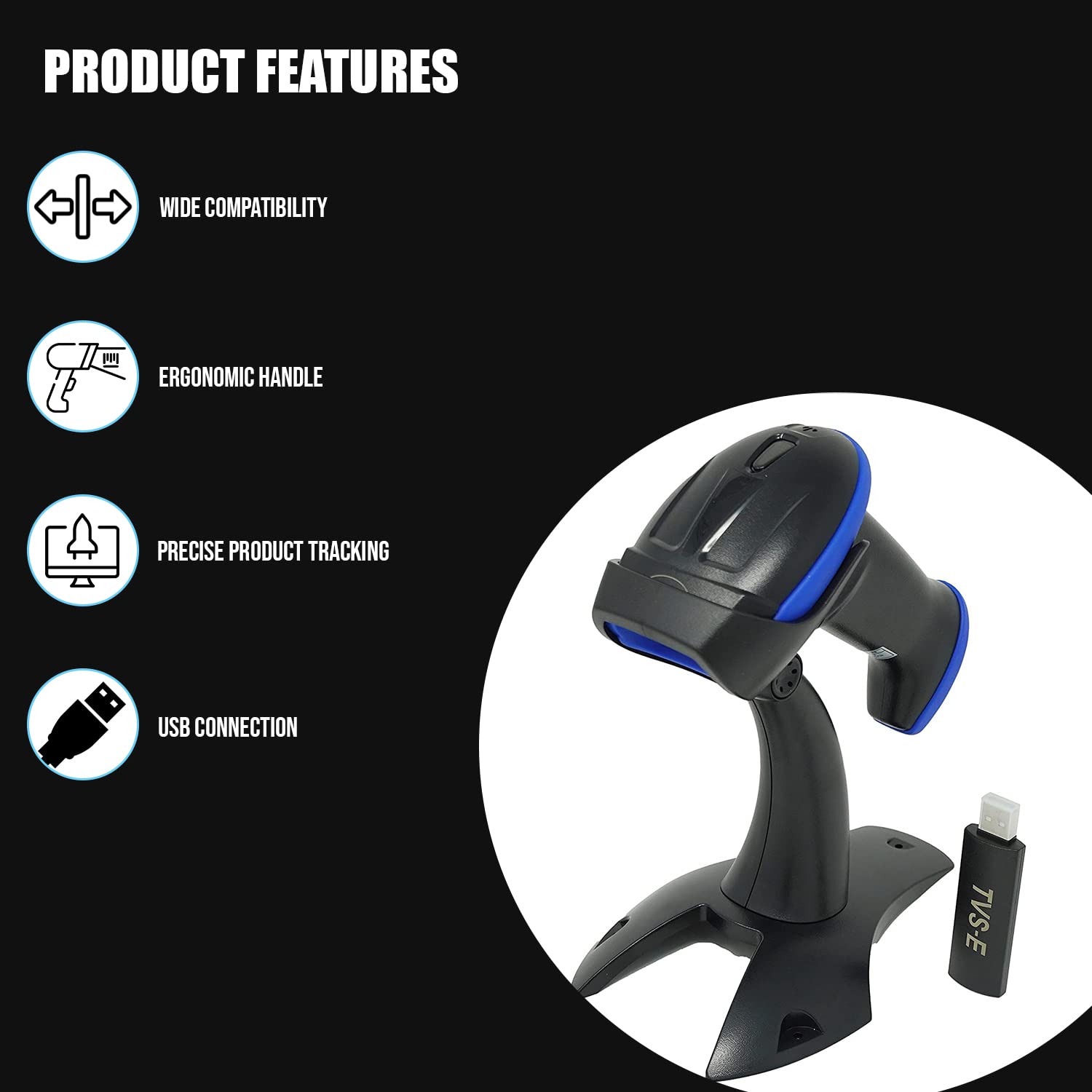

• Included Accessories:
  • USB Receiver Dongle
  • Micro USB Cable
  • Charging Stand

Warranty & Compliance

• Warranty: 1 Year (India)
• Certifications: CE, FCC, RoHS, BIS

Key Selling Points

✔ Long-Range Wireless – Up to 100m in open areas
✔ Fast Scanning – 100 scans/sec for quick checkouts
✔ Long Battery Life – 40 hours on a single charge
✔ Multi-Scanner Support – Connect up to 4 scanners to one receiver
